Treatments with reference to standards


Treatments with reference to specific
Treatments with reference to specific

We can supply when the application requires it, treatments with reference to precise specifications such as:

Anodizing standard:
-Mil-A-8625 Type II Class 1; AMS 2471
-Mil-A-8625 Type II Class 2; AMS 2472

Hard anodising:
-Mil-A-8625 Type III Class 1 & 2; AMS 2469

Anodizing preparatory to 'structural bonding:
-ASTM D3933
(phosphoric acid / base for epoxy adhesives)





Materiali Metallici, Polimerici ed Elastomeri


Stock plastic materials and not
Stock plastic materials and not

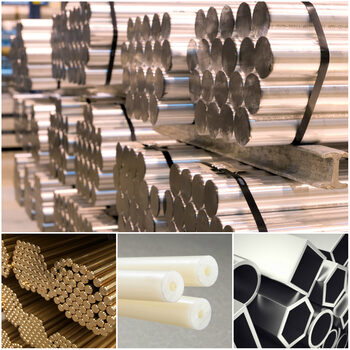

We work a full range of materials (rods, plates and tubes), also available in stock for quickly creating prototypes, pre-series or complete lots.

Metals for processing:
-Aluminum In the different alloys (anticorodal, avional ...)
-Stainless also steel (eg: AISI 304, AISI 316, AISI 303 ...)
-Brass (OT 58, OT 61 ...)
-Copper (CuTe, CuBe, C97, electrolytic Cu ...)
-Bronzi Marine aluminum

Plastic molding and / or processing:
-Poliammidi Also loaded (eg: glass fiber ...)
-P.T.F.E. (Teflon)
-Peek

Elastomer molding:
-Neoprene
-Policloroprene
-Silicone And Fluorosilicone
-NBR, HNBR...
-Ethylene Acrylic fireproof (eg: Vamac® G)





Tecno-polimeri ed Elastomeri Certificati


Plastic fire and flames

Materials certified under fire-smoke (molding):
We use suitable materials where necessary to meet the regulatory requirements of fire and smoke in relevant fields, among the most common:

-Resine Standard thermoplastic (UL 94, NFF 16-102; UNI CEI 11170-3 LR4; BS 6853)
  (e.g.: Peek, LCP, Poliammide, Ultem)

-Elastomeri Ethylene acrylic fireproof standard (UNI CEI 11170-3 LR4; NFF 16-102; Boeing BSS 7239 ASTM E162 ASTM E662)





Other Treatments


Materials in accordance with RoHS
Materials in accordance with RoHS


We treat the components with almost all commercially available technologies, with particular attention to treatments RoHS. Depending on the application and the needs of hours of resistance saline, we range for example between:

-Cataforesi-Zn Co-conductive
-cd + Passivation Olive Drab
-Painting Powder and traditional
-Anodizzazione Aesthetic multicolored
-Cromatura, Tinning, Nickel
-Fosfatazione
-Teflonatura






Treatments Precious


Metal roofs noble
Metal roofs noble

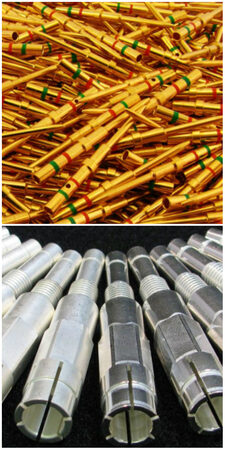

Contacts, elastic straps, crowns contact and many other elements for which the signal transmission must be guaranteed even under severe conditions, are treated with precious metals, mainly:


-gold (For the characteristics of corrosion)-Silver (For the characteristics of conductivity)


The process allows to obtain high flow rates where required, low contact resistance and characteristics of corrosion resistance superior to other traditional treatments.
